Dimension Parameters
- Appearance And Dimension

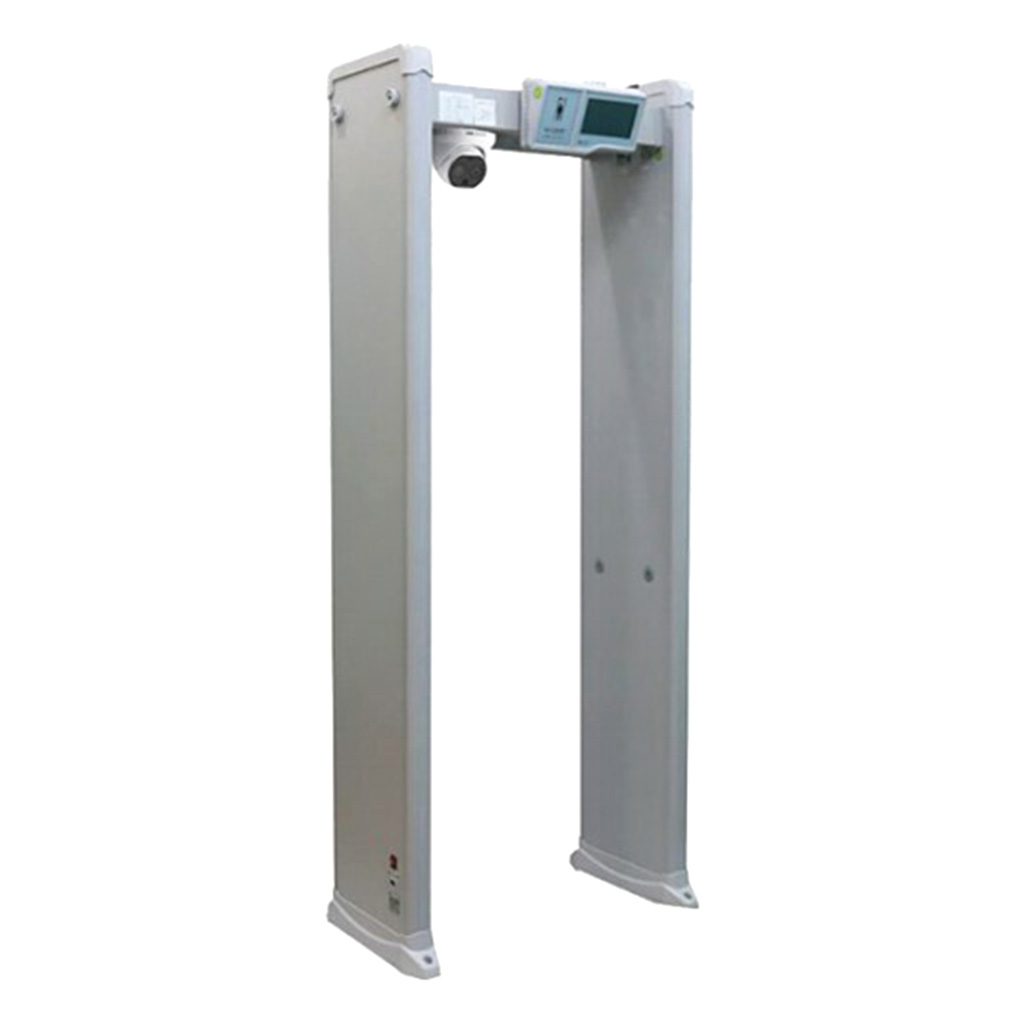

Detector dimension(without dome camera):2200 x 850 x 480mm (H x W x D)
Dome camera dimension :138.3 mm × 138.3 mm × 123.1 mm(H x W x D)
Package dimension 2270 x 700 x230mm(H x W x D)
Performance Parameters
- Power Supply110~240VAC，50-60Hz
Communication Protocol
- Network Communication
IPv4/IPv6,HTTP,HTTPS,802.1x,Qos,FTP,SMTP,UPnP,SNMP,DNS,DDNS,NT
P,RTSP,RTCP,RTP,TCP,UDP,IGMP,ICMP,DHCP,PPPoE,Bonjour
General Standard
- Working Temperature
Speed dome: 5℃ to 40℃, ＜95% RH
Walk-through detector: -20℃ to 85℃, 99%, RH
- Power Consumption<25W
- Protection Level
Dome camera: IP66
Walk-through detector: IP53
- 50Kg
Thermal Imaging
- Sensor Vanadium oxide uncooled sensor
- Max. Resolution160× 120
- Pixel Interval17μm
- Response Waveband8 to 14μm
- Lens (Focal Length)3mm
- Field Of View50°×37.2°
- Min. Focusing Distance0.3m
- Pseudo Color15, white heat, black heat,fusion1, rainbow, fusion2, iron oxide red1, iron oxide red2, puce, color1, color2, ice & fire, rain, red heat, green heat, and dark blue
Visible Light
- Sensor4 MP 1/2.7″ Progressive Scan CMOS
- Resolution2688×1520@25fps
- Min. Illuminance0.0018Lux @(F1.6,AGC ON) ,0 Lux with IR
- Focal Length4mm
- Field Angle84.0°×44.8°
- WDR Range120dB
- IR Distance Max. 15 m
Temperature Measurement
- Temperature Exception Detection Expert mode: 10 points, 10 frame, 21 rules on each line
- Body Temperature Measurement AI face detection, multi-target detection
- Measurement Range30 to 45℃
- Temperature Alarm Alarm triggered when the temperature is over the threshold
- Measurement Accuracy
No black body:±0.5℃
With black body: ±0.3℃
Compression
- Video CompressionH.265/H.264/MJPEG
- H265Main Profile
- H264Baseline Profile / Main Profile / High Profile
- Video Bit Rate:32 Kbps to 8Mbps
- Video StandardG.711/G.722.1/G.726/MP2L2/PCM
- Audio Bit Rate::64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
