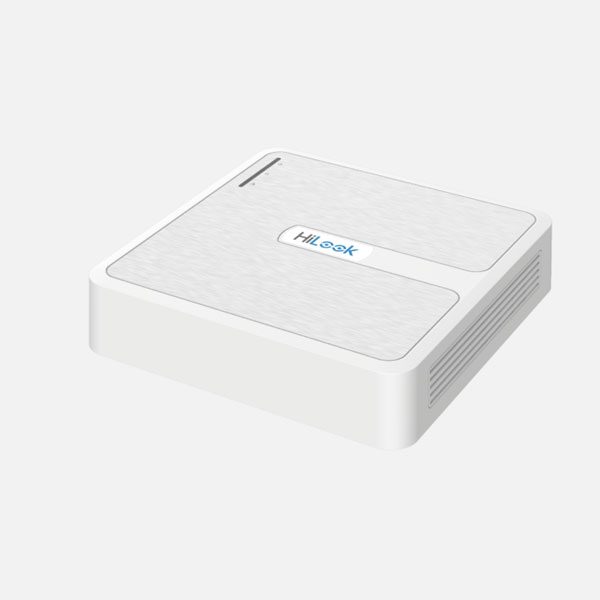

8-ch 1080p Mini 1U Lite H.264 DVR

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
Long distance transmission over UTP and coaxial cable
Supports 1080p lite, and when enabled the image effect is similar with 1080p
Encoding abilty up to 1080p lite @ 12 fps
One HDD for continuous video recording
Smart search for efficient playback.

Recording
Video CompressionH.264+/H.264
Encoding Resolution
When 1080p lite mode not enabled: 720p/WD1/4CIF/VGA/CIF

When 1080p lite mode enabled: 1080p lite/HD 720p lite/WD1/4CIF/VGA/CIF
Frame Rate
Main stream:

When 1080p lite mode enabled:

1080p lite/HD 720p lite/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

When 1080p lite mode not enabled:

For 720p stream access:

720p/WD1/4CIF/VGA@12fps; CIF@25fps (P)/30fps (N)

For SD stream access:

WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

Sub-stream:

CIF/QVGA/QCIF@12fps
Video Bitrate32 Kbps to 4 Mbps
Dual-StreamSupport
Stream TypeVideo, Video & Audio
Audio CompressionG.711u
Audio Bitrate64 Kbps

Video And Audio
IP Video Input
2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras
Analog Video Input
8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input1080p25, 1080p30, 720p25, 720p30
AHD Input1080p25, 1080p30, 720p25, 720p30
HDCVI Input1080p25, 1080p30, 720p25, 720p30
CVBS InputPAL/NTSC
HDMI Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Audio Input
1-ch, RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable
Audio Output1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
Synchronous Playback8-ch

Network
Remote Connection64
Network ProtocolTCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network Interface1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface
SATA1, SATA interface
CapacityUp to 6 TB capacity for each disk
USB InterfaceRear panel: 2 × USB 2.0
Alarm In/OutN/A

General
Power Supply12 VDC, 1.5 A
Consumption≤ 12 W (without HDD)
Working Temperature-10 °C to +55 °C (+14 °F to +131 °F)
Working Humidity10% to 90%
Dimension (W × D × H)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
≤ 0.8 kg (1.8 lb.)
