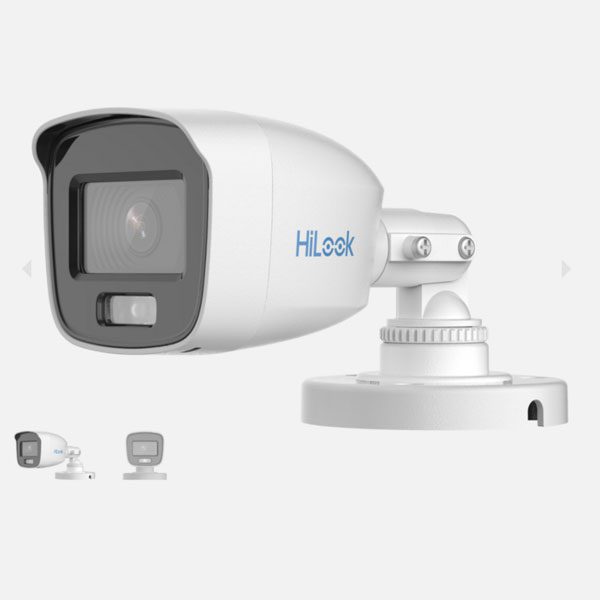

- Camera
- Image Sensor2 MP CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Signal SystemPAL/NTSC
- Frame Rate
TVI: 1080p@25fps/30fps
CVI: 1080p@25fps/30fps
AHD:1080p@25fps/30fps
CVBS: PAL/NTSC
- Min. Illumination0.001 Lux @ (F1.0, AGC ON)， 0 Lux with white light
- Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Lens MountM12
- Light AlarmSolid Light Alarm (White Light)
- Day & Night24/7 Color Imaging
- Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
- Lens
- Lens Type2.8 mm/3.6 mm/6 mm fixed focal lens
- Focal Length & FOV
2.8 mm, horizontal FOV: 102°, vertical FOV: 54°, diagonal FOV: 121°
3.6 mm, horizontal FOV: 80°, vertical FOV: 43°, diagonal FOV: 95°
6 mm, horizontal FOV: 52°, vertical FOV: 29°, diagonal FOV: 61°
- Illuminator
- Supplement Light TypeWhite Light
- Image
- Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
- Image SettingsBrightness;Contrast;Mirror;Defective Pixel Correction;Sharpness;Anti-Banding;Smart Light
- Wide Dynamic Range (WDR)Digital WDR
- Image EnhancementDWDR;BLC;HLC;Global
- White LightAuto/Off
- AGCYes
- Day/Night ModeColor
- White BalanceAuto/Manual
- Noise Reduction3D DNR/2D DNR
- LanguageEnglish
- Interface
- Video OutputSwitchable TVI/AHD/CVI/CVBS
- General
- Operating Condition-40°C to 60°C (-40°F to140°F), humidity: 90% or less (non-condensing)
- Power Supply
12 VDC±25%
*You are recommended to use one power adapter to supply the power for one camera.
- ConsumptionMax. 2.4 W
- MaterialPlastic
- White Light RangeUp to 20 m
- Dimension162.7 mm × 70 mm × 70 mm (6.41″ × 2.75″ × 2.75″)
- Approx. 152.5 g (0.34 lb.)
- Approval
- ProtectionIP66
