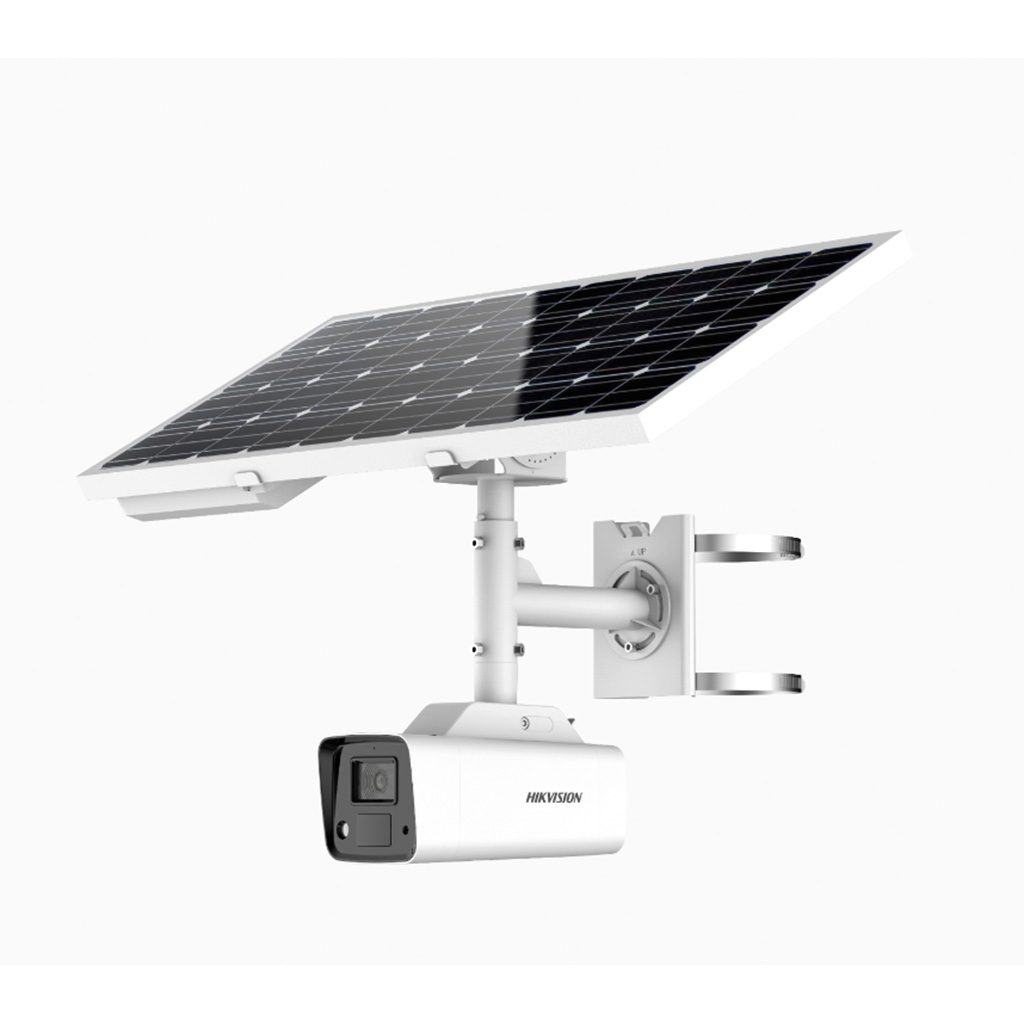

Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
- Shutter Time1/3 s to 1/100,000 s
- Angle Adjustment
Solar Cover: Pan: 0° to 358°, tilt: -40° to 40°
Camera: Pan: 0° to 360°，tilt: -60° to 0°
Lens
- Lens TypeFixed focal lens, 4 and 6 mm optional
- ApertureF1.0
- Focal Length & FOV
4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115°
6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
- Lens MountM16
DORI
- DORI
4mm, D: 77 m, O: 30 m, R: 15 m, I: 8 m
6mm, D: 116 m, O: 46 m, R: 23 m, I: 12 m
Illuminator
- Supplement Light TypeWhite Light
- Supplement Light Range
Performance mode: up to 30 m
Proactive mode: up to 10 m
- Smart Supplement LightYes
Video
- Main Stream
50 Hz: 12.5 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 15 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream
50 Hz: 12.5 fps (640 × 480, 640 × 360)
60 Hz: 15 fps (640 × 480, 640 × 360)
- Video Compression
Main stream: H.265/ H.264
Sub-stream: H.265/H.264/MJPEG
H.264+: Performance mode: main stream supports
H.265+: Performance mode: main stream supports
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR/VBR
- Region Of Interest (ROI)1 fixed region for main stream
- Scalable Video Coding (SVC)H.265 and H.264 support
Audio
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Environment Noise FilteringYes
- Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/AAC/MP3
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
Network
- SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Simultaneous Live ViewUp to 6 channels
- APIOpen Network Video Interface, ISAPI, SDK, ISUP
- ProtocolsTCP/IP, ICMP, HTTP, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, QoS, IPv6, UDP, Bonjour, SSL/TLS, SNMP, HTTPS, 802.1X
- User/HostUp to 32 users. 3 user levels: administrator, operator and user
- Network StorageAuto network replenishment (ANR)
- Client
iVMS-4200, Hik-Connect, Hik-Central
Proactive mode: Hik-Connect
- Web Browser
Plug-in required live view: IE 10+
Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Local service: Chrome 57.0+, Firefox 52.0+
Mobile Communication
- Frequency
LTE-TDD: Band 38/40/41;
LTE-FDD: Band 1/3/5/7/8/20/28;
WCDMA: Band 1/5/8;
GSM: band 3/5/8
- Standard LTE-TDD, LTE-FDD, WCDMA, GSM
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)120 dB
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
PIR
- PIR Angle Horizontal: 100°, vertical: 80°
- PIR Range Up to 15 m
Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage
Built-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Built-in 64 GB eMMC storage (50 GB available for recording)
- Built-In Microphone Yes
- Built-In Speaker Yes
- Reset Key Yes
Event
- Basic Event Motion detection, video tampering alarm, exception, PIR
- Linkage Upload to memory card, notify surveillance center, audible warning, trigger recording, trigger capture, send email
General
- Power
Power Consumption and Current:
Typical power scenarios: 1.85 W (4 G working)
Standby scenarios: 40 mW
Max. power consumption: 7.2 W
Power Supply:
12 VDC ± 25%
*For debugging only
40 W(deviation: ± 2 W) Solar panels
Power Interface:
Power supply interface: Φ5.5 mm coaxial power plug
Extendd solar panel: four-core aviation connector
- MaterialADC12
- Storage Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
- Language
33 languages
English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General FunctionHeartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
- Startup And Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
- Dimension614.8 mm × 390.5 mm × 760 mm (24.2″ × 15.4″ × 29.9″)
- Package Dimension837 mm × 267 mm × 445 mm (33″ × 10.5″ × 17.5″)
-
Pre-install plate: approx. 1080 g (2.4 lb.)
Bullet camera + bracket + solar panel: approx. 8540 g (18.8 lb.)
- With Package Weightapprox. 11860 g (26.1 lb.)
Battery
- Battery TypeTernary lithium
- Capacity23.2 Ah
- Max. Charging Voltage8.4 V
- Operating Temperature
Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)
Discharge: -20 °C to 55 °C (-4 °F to 131 °F). Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)
- Battery Voltage5.5 V to 8.4 V
- Cycle Lifetime
Performance mode: 2.5 day
Proactive mode: 4.5 day
Standby mode: 24 days
- Battery LifeMore than 500 cycles
Approval
- EMC
FCC SDoC (47 CFR Part 15, Subpart B);
CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014);
RCM (AS/NZS CISPR 32: 2015)
- RF
FCC ID (FCC Part 15.247(BT or 2.4G));
CE-RED (EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G);
EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G));
- Safety
CB (IEC 62368-1:2014+A11);
CE-LVD (EN 62368-1:2014/A11:2017);
LOA (IEC/EN 60950-1)
- Environment
CE-RoHS (2011/65/EU);
WEEE (2012/19/EU);
Reach (Regulation (EC) No 1907/2006)
- ProtectionIP67 (IEC 60529-2013)
