Network Parameters

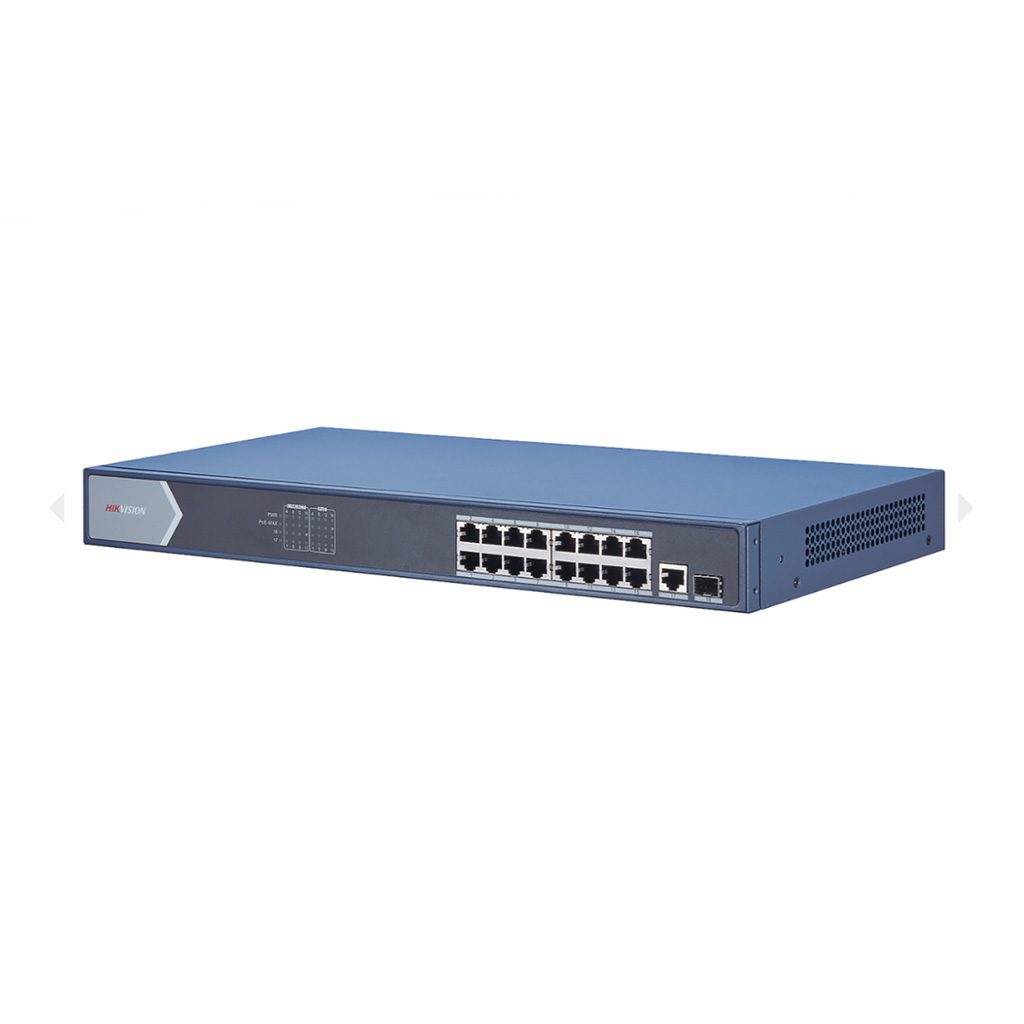

- Ports16 × Gigabit PoE ports, 1 × Gigabit RJ45 port, and 1 × Gigabit fiber optical port
- Port TypeRJ45 port, full duplex, MDI/MDI-X adaptive
- StandardIEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
- Forwarding ModeStore-and-forward switching
- MAC Address Table8 K
- Switching Capacity36 Gbps
- Packet Forwarding Rate26.784 Mpps
- Internal Cache4.1 Mbits
PoE Power Supply
- PoE StandardIEEE 802.3af, IEEE 802.3at
- PoE Power PinEnd-span: 1/2(-), 3/6(+)
- PoE PortPorts 1 to 16
- Max. Port Power30 W
- PoE Power Budget230 W
General
- Dimensions (W × H × D)440 mm × 44 mm × 220.8 mm (17.3” × 1.7” × 8.7”)
- ShellMetal material
- Gross Weight3.53 kg (7.78 lb)
- Net Weight2.67 kg (5.89 lb)
- Operating Temperature-10 °C to 55 °C (14 °F to 131 °F)
- Operating Humidity5% to 95% (no condensation)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Storage Humidity5% to 95% (no condensation)
- Power Consumption In Idle20 W
- Power Supply100 to 240 VAC, 50/60 Hz, Max. 4 A
- Max. Power Consumption250 W
Approval
- EMCFCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 11)
- SafetyUL (UL 62368-1); CB/RCM (IEC 62368-1:2014); CE-LVD (EN 62368-1:2014+A11:2021)
- ChemistryCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2010)
